BNC to VGA converter

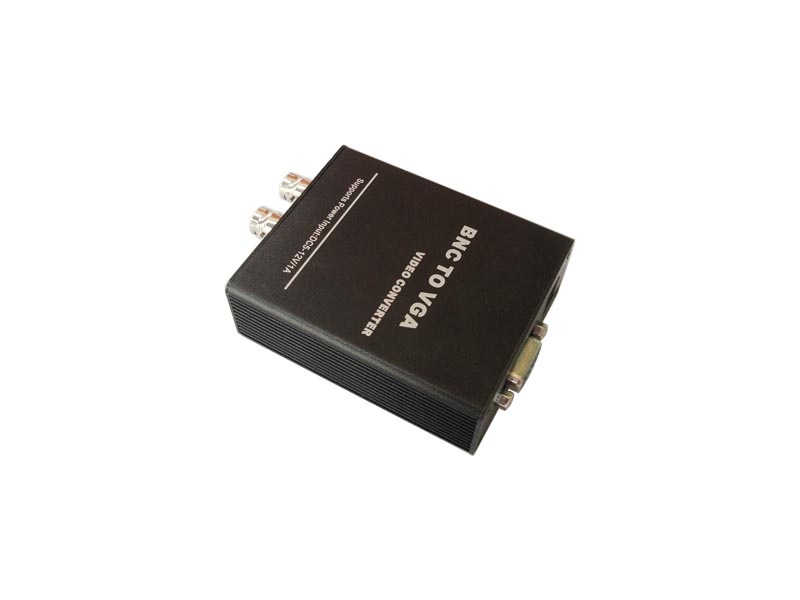

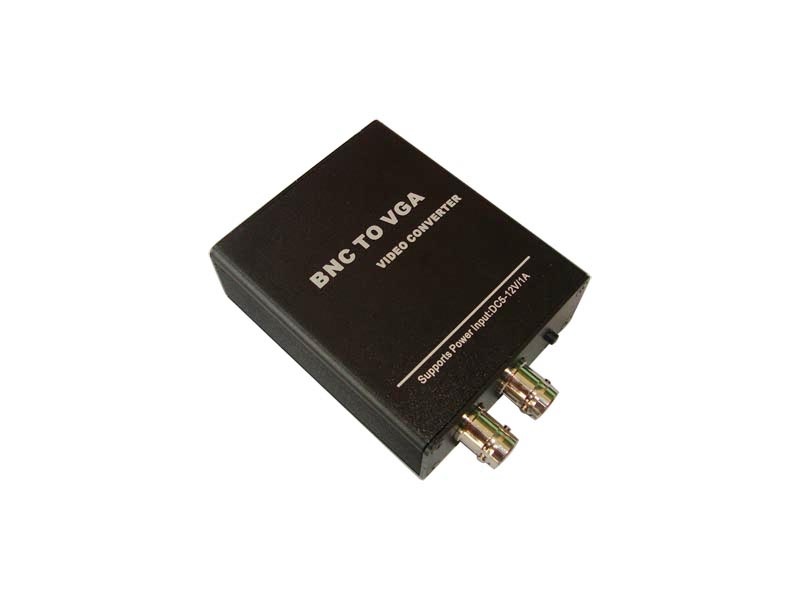

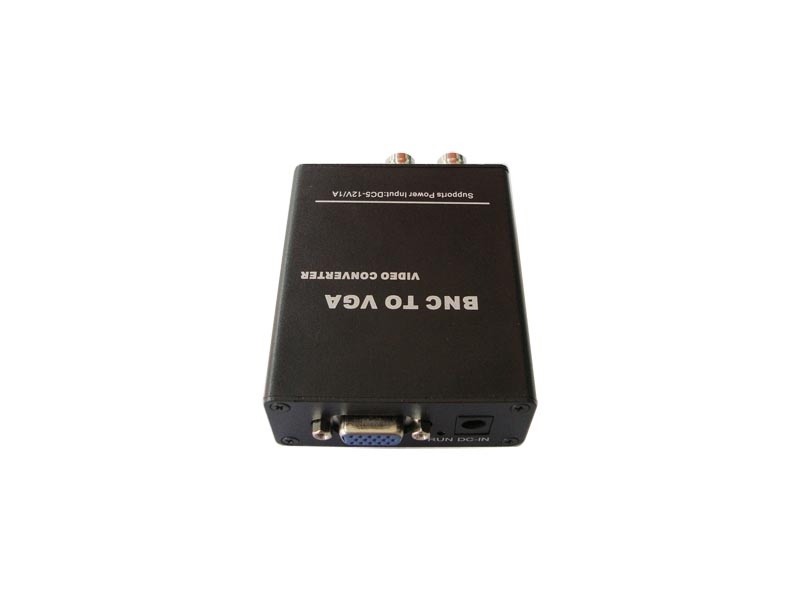

BNC to VGA converter(model:ADR-990) is a profession should be used for television closed circuit monitor and control systematic video converters.

BNC to VGA converter(model:ADR-990) is a profession should be used for television closed circuit monitor and control systematic video converters.It can convert the source signals of CVBS(BNC) into standard D-Sub signal.With adoption of advanced video straight-through technonlogy,the source signal of CVBS(BNC) can be converted into VGA signal without any data loss.It supports plug-and-play,no diver program installation is needed.


Functions


※ Supports Composite CVBS(BNC);
※ External power from DC5V-12V@1000Ma
※ Pure hardware design,just Plug-and-play No software or driver requiremen;
※ Automatic identifyication of the three color systems i.e. PAL,NTSC and SECAM;
※Supports VGA output resolution:800x600@60Hz,1024x768@60Hz(default),1280X1024@60Hz,1440X900@60Hz,1680X1050@60Hz,1600*1200@60Hz
※ Industry-level design(size:80x65x27mm);
※ Weight:250g

Connection Image


Interface Specification




Item

Description

BNC out

Conncet CVBS(BNC) monitor or DVR

BNC in

Connect CVBS(BNC) source

SET

Set the VGA output resolution



Item

Description

VGA out

Connect VGA Display

LED

Show work staus.

DC5V in

Connect DC5V/1A power supply


Accessories & Package



Parts Name

Quantity

Notes

Host machine

1


Qualification

1


Power Adapter

1

DC5V/1A supply

User`s Manual

1


Download
