HOME > PRODUCTS > Industrial Series > Industrial converterRGB,CGA,EGA,MDA to VGA converter(Model:ADR-8219) widely used in Indutrial RGB monitor replace,CGA Monitor Replacement,EGA Monitor Replacement,Monochrome MDA Monitor Replacement, Mitsubishi CNC Monitors replacement,Siemens industrial monitors replacement,etc.
Functions
|
Input
|
Type |
MDA、CGA、EGA、RGB、RGB Sog、RGBS、RGBHV、YPbPr |
|
Interface |
BNC Port,9 PIN, 3 PIN, 6 PIN, 7 PIN, 14 PIN, 20 PIN, 24 PIN, 25 PIN… |
|
|
Parameter |
Analog：0.5-1.0 / TTL：3-5V |
|
|
Output |
Type |
Standard VGA/SVGA,800*600/60hz,640*480/60hz |
|
Interface |
Standard 15Pin D-SUB |
|
|
Power |
DC 12V 1.0A / Consumption- 2.0W maximum |
|
Note:
1.YPbPr = YUV
2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.
3.Support RGB and YPbPr
4.Support Interlaced Scanning and Line by Line Scanning.
5.Support Vertical Resolution from line200 to line 600 automatically recognized.
6.Support variable Horizontal Resolution automatically recognized。
7.Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized
8.Output resolution: 800*600/60Hz standard VGA or custom-resolution.

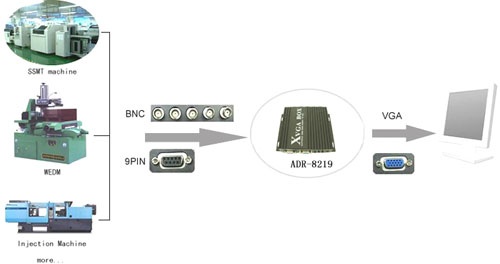

Connection Image
Interface Specification
|

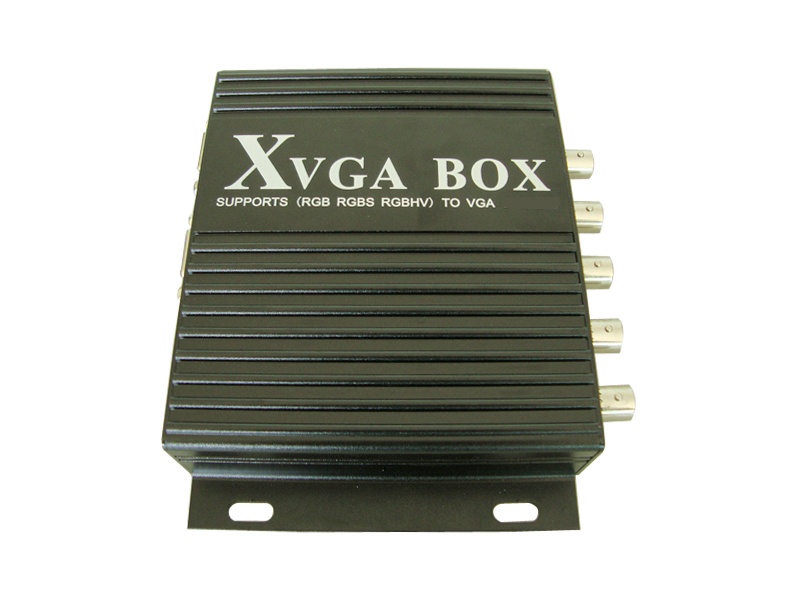

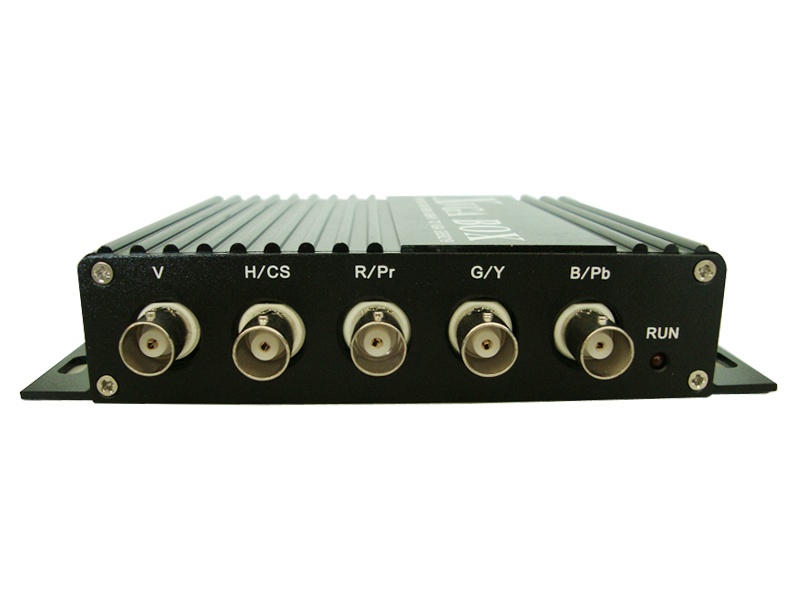

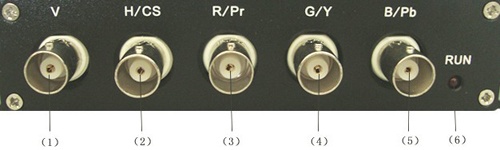

Item |
Spec. |
|
(1) V |
Connect V Source |
|
(2) H/CS |
Connect H or CS Source |
|
(3) R/Pr |
Connect R or Pr Source |
|
(4) G/Y |
Connect G or Y Source |
|
(5) B/Pb |
Connect B or Pb Source |
|
(6) RUN |
Show work staus. |
|

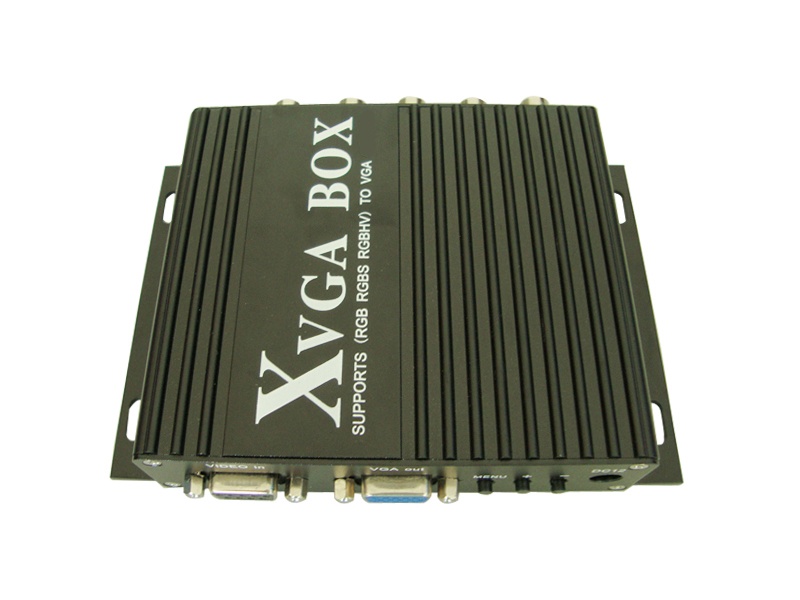

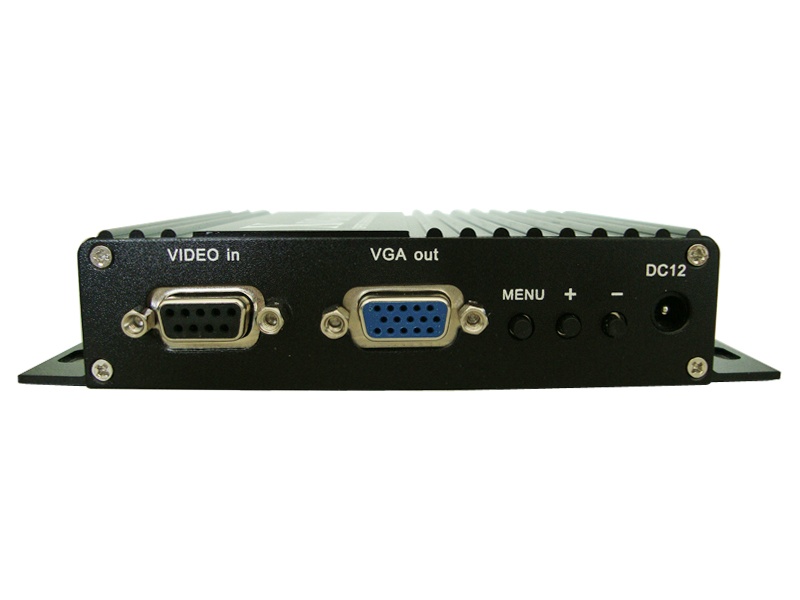

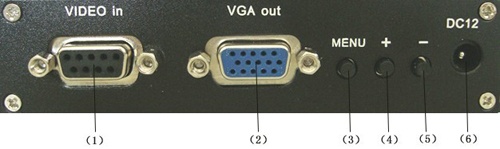

Item |
Spec. |
|
(1) VGA in |
Connect 9 PIN VGA Source |
|
(2) VGA out |
Connect LCD or CRT display |
|
(3) MENU |
Function setting button |
|
(4) + |
Function setting button |
|
(5) - |
Function setting button |
|
(6) DC12 |
Connect DC12/1A power supply |
Accessories & Package
|
Item |
Qty |
Notes |
|
ADR-8219 RGB to VGA converter |
1 |
|
|
9 PIN cable |
1 |
|
|
9 PIN interface |
1 |
|
|
Power |
1 |
DC12/1A |
|
User’s Maunal |
1 |
English |
