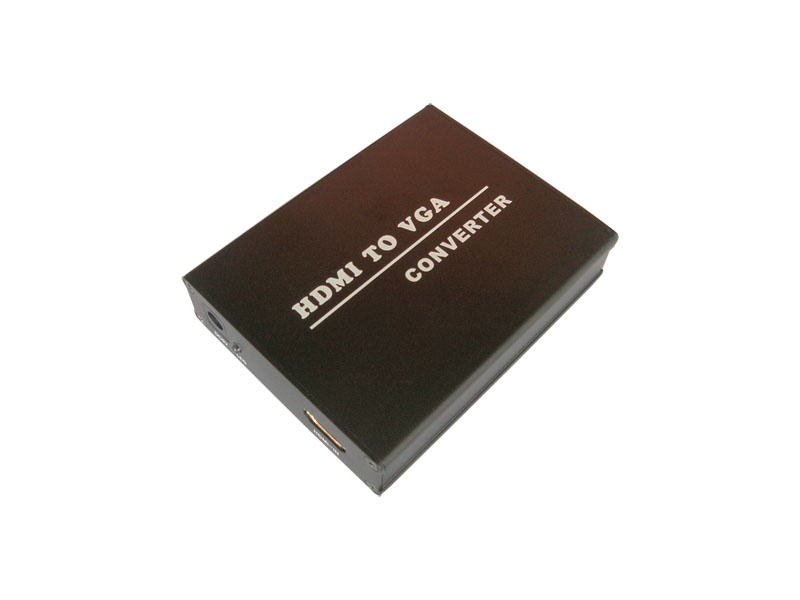

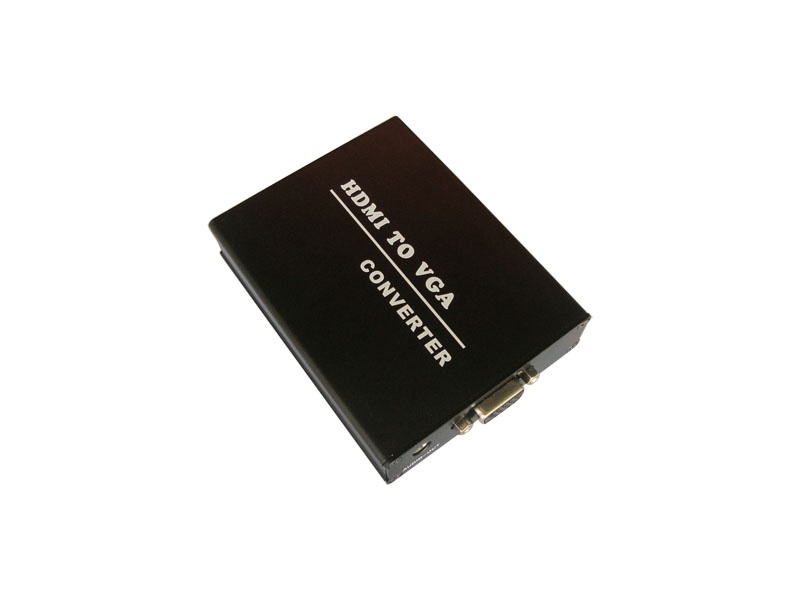

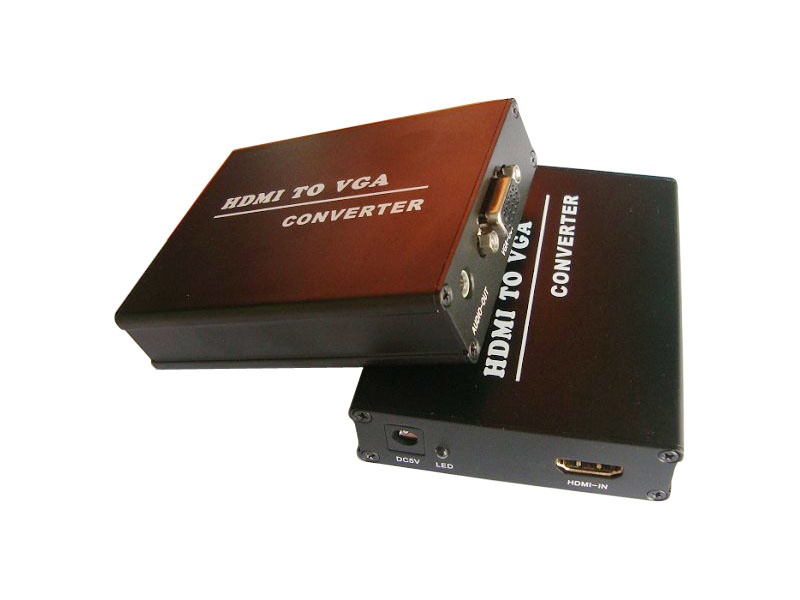

HDMI to VGA converter

HDMI to VGA converter (Model:ADR-310) can convert digital HDMI signal to high resolution analogue VGA format , it also can separate the audio signal from HDMI and deliver it through 2.1 audio jacks . No driver or software required and suitable for all HDMI formats. Perfect for projectors, gaming or other high definition video equipments.

For Example, DVD player, BLU-Ray DVD, HD-set top converter box, XBOX360, PS3, other gaming systems, or the HDMI cards of computer.

Functions

◇ HDMI: 1.3
◇ HDCP:1.2
◇ Input: HDMI
◇ Output: VGA、 AUDIO
◇ Input singal:4801、480P、576I、576P、720P、1080I、1080P
◇ VGA Output signal: 800*600@60Hz,1024*768@60Hz,1280*1024@60Hz,1440*900@Hz,1680*1050@60Hz,1600*1200@60Hz,
1920*1080@60Hz(same format as input)
◇ Audio signal: 3.5mm
◇ Power: DC-5V/1A

Connection Image

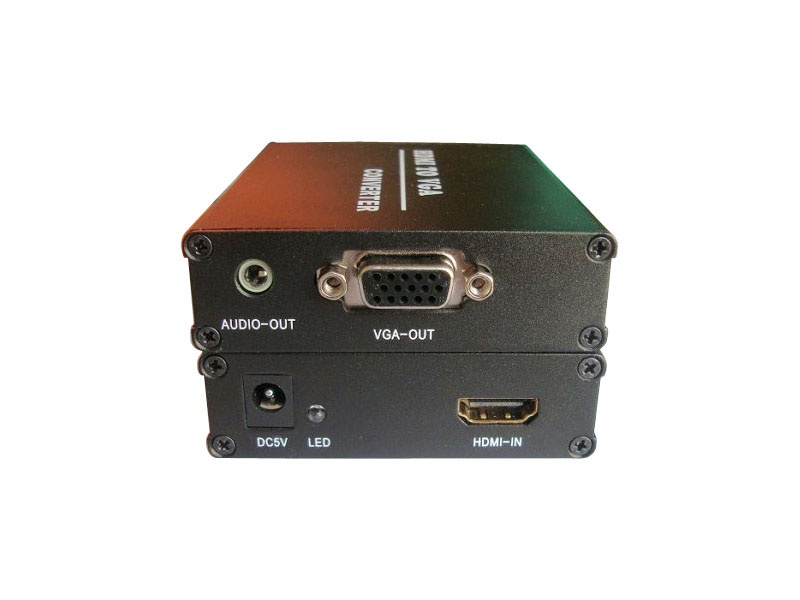

Interface Specification

Item	Spec.
AUDIO-OUT	Connect Speaker
VGA-OUT	Connect VGA Display
DC5V	Connect DC5V/1A power supply
LED	Power Indicator
HDMI-IN	Connect HDMI Source

Accessories & Package

Item	Qty	Notes
ADR-310 HDMI to VGA converter	1
Power	1	DC5V/1A
User Maunal	1	English
